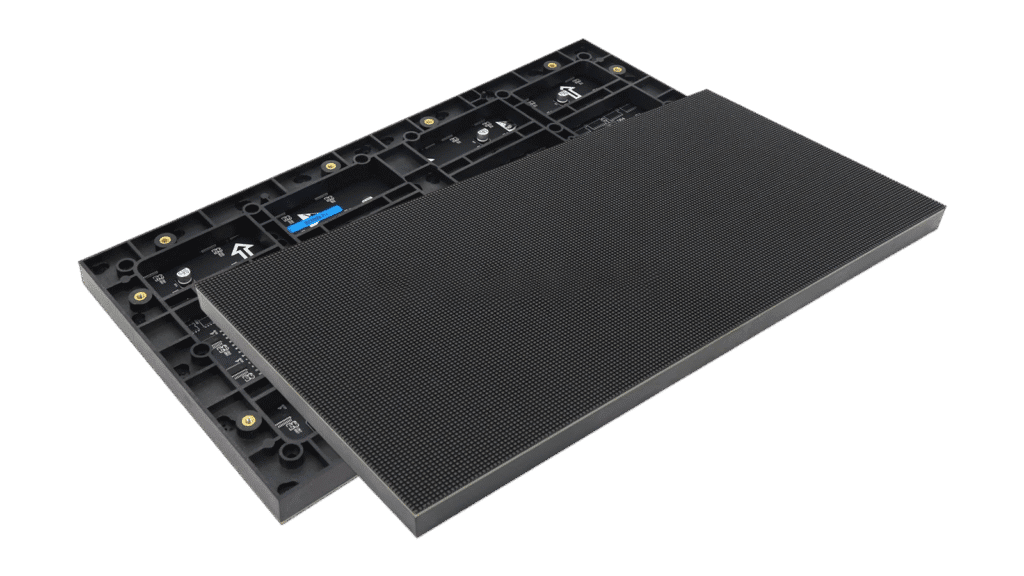

InDOOR LED DISPLAY MODULE

The Indoor LED Display module is an LED Display Module panels featuring an ultra-high pixel density and suitable for an extremely diverse array of indoor LED video walls. It embodies leading-edge technology that is custom-suited for indoor applications across multiple environments, including airports, retailers, bars, hotels, places of worship, control centers, meeting rooms, subway tunnels, exhibitions, and indoor business events.

Overview

Products

Features

Specification

FAQ

Overview

The Indoor LED screen module uses highly stable driver ICs for consistent performance and color uniformity on the display surface. These driver ICs regulate power to individual LEDs to prevent color discrepancies and deliver clear, crisp, realistic images.

These modules use state-of-the-art SMD technology, embedding thousands of bright LEDs into a black PCB board. They emit full-color light, spanning red, green, and blue hues.

High contrast high refresh rate indoor LED display module, full color indoor LED screen panel with a wide variety of pixel pitches from 5mm, 4mm, and 3mm to 2.5mm and 2mm, and lots more.

Ideal for indoor, 160-degree visibility
1R1G1B full-color LED display panel
Low over 600-1000 Nits brightness for interior installation.
Highly stable driver ICs to provide better color evenness and bright images
Based on the newest SMD encapsulation, providing a great full-color present.
A high contrast ratio of 5000:1 to provide bright colors.
High refresh rate over 1920hz to 3840Hz to enable flicker-free
High-definition visual output.
Compliant with mainstream
control systems Novastar
Support various display formats like text, image, video, docs, etc
Pixel pitch varies from P0.9, P1.25,P1.5, P1.8, P2, P2.5, P1.2 COB, P1.2 GOB, P1.5 COB, P1.5 GOB, P3, P4 to P5, etc.

Types Of lED Module product

DS- 0.9 mm Indoor LED Module

The P0.9mm pixel pitch brings ultra-fine image clarity, making it perfect for indoor close-viewing environments.
This is because its edge-cut design allows stitching of the panels in such a seamless way that it does not show any lines.
The module features an ultra-high refresh rate, which provides flicker-free and smooth video playback.
Broadcast-grade grayscale processing enhances the fine details and strengthens the overall depth of an image.
High brightness and high contrast ensure vivid performance in a multitude of indoor lighting conditions.
The module is designed for stable and reliable 24/7 operation, suitable for mission-critical applications.
Its lightweight and modular structure supports flexible installation in custom layouts or large video walls.
Wide viewing angles maintain consistent image quality from different positions in the room.
Advanced color accuracy technology reproduces natural, vivid, and even-colored tones.
It is the perfect module for control rooms, boardrooms, retail displays, broadcast studios, and other premium applications in indoor signage.

Specification	Details
Pixel Package	SMD 1010
Pixel Structure	1R1G1B
Pixel Pitch	0.9
Module Resolution (W×H)	320×180
Module Dimensions (W×H)	288×162
Unit Modules Component (W×H)	1
Resolution Cabinet (W×H)	640×360
Unit Cabinet Dimension	576×324
Unit Area (㎡)	0.1866
Unit Flatness (mm)	0.5 ± 2
Maintenance Mode	Front maintenance
Material	Die-casting Aluminium
Brightness (nits)	600 to 800
Color Temperature	3500–9300
Viewing Angle	160°H / 160°V
Recommended Viewing Distance	0.9m
Brightness Uniformity	≥97%
Color Uniformity	≥97%
Contrast	4000:1
Max Consumption (W/㎡)	650
Average Consumption (W/㎡)	280
Power Supply	AC 90–132V / 180–264V
Driving Mode	Constant current drive
Frame Frequency	60Hz
Refresh Rate	≥3840Hz
Processing Depth (bit)	16
Grey Level	65536
Color	16770000
Brightness Control	256 level
Working Hours	≥100000h
Working Temperature	-20℃ ~ 60℃
Storage Temperature	-20℃ ~ 60℃
Working Humidity	10% ~ 95% RH
Storage Humidity	10% ~ 95% RH
Pixel Density (dots/㎡)	~1,137,777

P 1.25 mm Indoor LED Module

The P1.25 LED module provides clear, detailed imagery due to its closely arranged pixel configuration, ensuring that small text and branding elements are easily readable.
Its SMD technology guarantees uniform brightness and color precision, even when viewed from various angles within a space.
Tailored for upscale indoor settings, it integrates seamlessly into corporate lobbies, executive suites, and contemporary presentation areas.
The module operates effectively on camera, minimizing flicker and offering broadcast-friendly outputs for both recording and live streaming.
Weighing lightly, it simplifies installation while ensuring dependable long-term durability.
With options for accurate color calibration, the display maintains natural skin tones and true brand colors over extended use.
A highly effective heat management system enables the panel to remain cool and stable, even during prolonged operation.
High refresh rates ensure that rapidly moving visuals are displayed clearly and without motion blur.
Engineered for continuous use, it provides reliable performance in crucial indoor applications.
Perfect for premium retail environments and command centers, the P1.2 module stands out where clarity, precision, and reliability are paramount.

Specification	Details
Pixel Package	SMD 1515
Pixel Structure	1R1G1B
Pixel Pitch	1.2
Module Resolution (W×H)	208×104
Module Dimensions (W×H)	320×160
Unit Modules Component (W×H)	1
Resolution Cabinet (W×H)	344×258
Unit Cabinet Dimension	640×480
Unit Area (㎡)	0.0512
Unit Flatness (mm)	0.5 ± 2
Maintenance Mode	Front maintenance
Material	Aluminium
Brightness (nits)	600 to 800
Color Temperature	3500–9300
Viewing Angle	160°H / 160°V
Recommended Viewing Distance	1.2m
Brightness Uniformity	≥97%
Color Uniformity	≥97%
Contrast	3000:1
Max Consumption (W/㎡)	700
Average Consumption (W/㎡)	300
Power Supply	AC 90–132V / 180–264V
Driving Mode	Constant current drive
Frame Frequency	60Hz
Refresh Rate	≥3840Hz
Processing Depth (bit)	16
Grey Level	65536
Color	16770000
Brightness Control	256 level
Working Hours	≥100000h
Working Temperature	-20℃ ~ 65℃
Storage Temperature	-20℃ ~ 65℃
Working Humidity	10% ~ 95% RH
Storage Humidity	10% ~ 95% RH
Pixel Density	694444

P 1.5 mm Indoor LED Module

The P1.5 module provides the perfect balance between clarity and cost-effectiveness, making it ideal for mid-distance indoor viewing.
Its high-density pixel layout produces vibrant visuals suitable for corporate presentations and signage.
The module is constructed with robust elements, which ensure stability in the most critical ambient conditions.
Its uniform color reproduction produces natural, smooth gradients and sharp image quality.
The easy-maintenance design features quick, front-access servicing for faster on-site repairs.
A flicker-free display makes for comfortable viewing during extended presentations and meetings.
The lightweight yet rigid construction reduces the load on LED cabinets during installation.
Designed to be energy-efficient, it consumes less power while providing high brightness.
Suitable for conference rooms, studios, education spaces, and indoor advertisement settings.

Specification	Details
Pixel Package	SMD 1515
Pixel Structure	1R1G1B
Pixel Pitch	1.5
Module Resolution (W×H)	208×104
Module Dimensions (W×H)	320×160
Unit Modules Component (W×H)	1
Resolution Cabinet (W×H)	344×258
Unit Cabinet Dimension	640×480
Unit Area (㎡)	0.0512
Unit Flatness (mm)	0.5 ± 2
Maintenance Mode	Front maintenance
Material	Aluminium
Brightness (nits)	600 to 800
Color Temperature	3500–9300
Viewing Angle	160°H / 160°V
Recommended Viewing Distance	1.5m
Brightness Uniformity	≥97%
Color Uniformity	≥97%
Contrast	3000:1
Max Consumption (W/㎡)	700
Average Consumption (W/㎡)	300
Power Supply	AC 90–132V / 180–264V
Driving Mode	Constant current drive
Frame Frequency	60Hz
Refresh Rate	≥3840Hz
Processing Depth (bit)	16
Grey Level	65536
Color	16770000
Brightness Control	256 level
Working Hours	≥100000h
Working Temperature	-20℃ ~ 65℃
Storage Temperature	-20℃ ~ 65℃
Working Humidity	10% ~ 95% RH
Storage Humidity	10% ~ 95% RH
Pixel Density	422500

P 1.86 mm Indoor LED Module

The P1.8mm pixel pitch offers excellent clarity for indoor visual applications with medium viewing distances.
Seamless stitching of cabinets creates a perfect, smooth video wall without any gaps.
A high refresh rate keeps the display of content stable and flicker-free at all times.
Advanced grayscale technology enhances fine details, making images more realistic.
With high brightness and optimized contrast, this projector series offers bright, vivid imagery in a variety of indoor environments.
It is designed to operate continuously, ensuring stability in commercial settings.
Lightweight modules allow for flexible installation in large video walls or custom-shaped ones.
Wide viewing angles assure uniform picture quality across the entire room.
Accurate color reproduction ensures faithful and vibrant image output.
Perfect for corporate lobbies, universities, control centers, and premium indoor installations.

Specification	Details
Model Number	P1.875-32S
Module size	240mm*240mm
Pixel pitch	1.875mm
Pixels Density	284444 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD1515
Pixel resolution	128dots(W)*128 dots(H)
Best viewing distance	1.8M～10M
Panel current	6-6.5A
Max Power	45W
Module thickness	16mm
Weight	0.6KG
Drive type	Constant drive
Scan mode	1/32scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

P 2 mm Indoor LED Module

The P2 module balances clarity and scale, making it suitable for large-sized indoor screens.
Its LEDs are powerful, providing sufficient illumination in areas with strong ambient lighting.
The module supports persistent color consistency, even after long usage.
Advanced driver ICs enhance the visual smoothness of sports replays and motion graphics.
The mask design is reinforced, reducing the possibility of pixel damage in public areas.
P3 panel supports long-distance readability for informational content.
Anti-glare surface treatment enhances display visibility from various angles.
Consequently, this module is optimized for lower latency, which best suits broadcast environments.
The durable design withstands commercial operational cycles.
Best suited for malls, indoor arenas, worship halls, and public LED displays.

Specification	Details
Model Number	P2-40S
Module size	256mm128mm, 320160mm
Pixel pitch	2mm
Pixels Density	250000 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD1515
Pixel resolution	160dots(W)* 80dots(H)
Best viewing distance	2M～20M
Panel current	3.5-4A
Max Power	20W
Module thickness	14.7mm
Weight	0.369KG
Drive type	Constant drive
Scan mode	1/40 Scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

2.5 mm Indoor LED Module

The P2.5 module offers excellent clarity for medium-distance audiences without the need for ultra-high pixel density.
It has reinforced corner protection to prevent damage to LEDs during installation.
It retains good color balancing, even on bright and vivid visuals.
Its power-efficient drivers reduce electricity usage during long-hour operations.
It produces smooth, stable brightness transitions for gradient-heavy visuals.
Protective coating of resin ensures durability against minor environmental factors indoors.
The module supports flexible mounting systems that make creative display shapes possible.
The high-contrast performance of this projector makes it ideal for indoor branding visuals and product showcases.
The P2.5 module integrates noise-free performance for silent professional atmospheres.

Specification	Deatils
Model Number	P2.5-32S
Module size	320mm*160mm
Pixel pitch	2.5mm
Pixels Density	160000 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD2020
Pixel resolution	128dots(W)*64 dots(H)
Best viewing distance	2.5M～30M
Panel current	4-4.5A
Max Power	36W
Module thickness	16mm
Weight	0.4KG
Drive type	Constant drive
Scan mode	1/32scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

P 3 mm Indoor LED Module

The P3 module balances clarity and scale, making it suitable for large-sized indoor screens.
Its LEDs are powerful, providing sufficient illumination in areas with strong ambient lighting.
The module supports persistent color consistency, even after long usage.
Advanced driver ICs enhance the visual smoothness of sports replays and motion graphics.
The mask design is reinforced, reducing the possibility of pixel damage in public areas.
P3 panel supports long-distance readability for informational content.
Anti-glare surface treatment enhances display visibility from various angles.
Consequently, this module is optimized for lower latency, which best suits broadcast environments.
The durable design withstands commercial operational cycles.
Best suited for malls, indoor arenas, worship halls, and public LED displays.

Specification	Details
Product Model	Hike Vision P3 Indoor LED Module
Pixel Pitch	3.0 mm
LED Type	SMD2121
Module Resolution	64 x 64 pixels
Module Size (mm)	192 x 192 mm
Module Weight	0.45 kg
Brightness (cd/m²)	≥800
Refresh Rate (Hz)	≥1920
Viewing Angle (H/V)	140° / 140°
Grey Scale	14-bit
Max Power Consumption (W/m²)	≤700
Avg Power Consumption (W/m²)	≤250
Ingress Protection (Front/Rear)	IP43 / IP20
Operating Temperature	-10°C to +40°C
Lifespan (Hours)	≥100,000
Installation Type	Fixed / Wall Mounted
Maintenance	Front or Rear Maintenance
Cabinet Material	Aluminum / Die-cast
Cabinet Size (mm)	576 x 576 mm
Cabinet Weight	7.2 kg
Application	Indoor Advertising, Retail, Events

P 1.2 mm COB Indoor LED Module

The P1.2 COB module offers ultra-fine clarity along with a smooth, glass-like surface that eliminates visible pixel gaps.
Its anti-collision LED structure assures maximum durability, making it resistant to any kind of accidental touch or impact.
COB packaging boosts thermal performance, ensuring cooler operations even under continuous use.
It provides a superior moisture barrier-a perfect solution for indoor applications sensitive to humidity.
Its wide-area light emission provides a softer visual effect, reducing viewer eye fatigue during long sessions.
It provides better dust protection at the surface, so that cleaning and maintaining it is easier.
It retains very good color uniformity, even at very low levels of brightness.
COB technology provides deeper blacks and improved shadow performance for cinematic visuals.
Its seamless surface helps prevent pixel dead spots and ensures long-term reliability.

Specification	Details
Pixel Pitch	1.25 mm
LED Type	Chip-on-Board (COB)
Pixel Density	640,000 pixels/m²
Module Resolution	240 x 135 pixels
Module Size	300 mm x 168.75 mm
Cabinet Resolution	480 x 270 pixels
Cabinet Size	600 mm x 337.5 mm
Cabinet Material	Die-cast Aluminum
Cabinet Weight	Approx. 6.5 kg
Brightness	≥600 nits
Refresh Rate	≥3840 Hz
Contrast Ratio	≥10000:1
Viewing Angle (H/V)	170° / 170°
Gray Scale	16 bit
Color Temperature	3000K~9500K (adjustable)
Input Voltage	AC 100–240V, 50/60Hz
Max Power Consumption	≤600 W/m²
Avg Power Consumption	≤200 W/m²
IP Rating (Front/Rear)	IP54 / IP30
Operating Temperature	-10°C to +45°C
Operating Humidity	10% – 90% RH
Lifetime	≥100,000 hours
Installation Type	Fixed
Maintenance Method	Front Maintenance
Control System	NovaStar / Colorlight
Protection Technology	Anti-collision, Anti-dust, Moisture-proof
Certification	CE, RoHS, EMC

P 1.2 mm GOB Indoor LED Module

Main Features

The P1.2 GOB module has a transparent protective glue layer to protect LEDs from water, dust, and impact.
The surface protection increases ruggedness without affecting the clarity of the image.
With high visual smoothness, this module provides a very rich and detailed experience for viewers who are in close-up proximity.
GOB coating also improves resistance to oxidation of the LED chip, ensuring long-term stability.
The anti-reflective finish keeps visuals sharp, even under spotlights or studio lighting.
Reinforcement reduces the failure rate of LEDs, hence it is reliable for high-end installations.
High-contrast performance is supported by the module with improved color consistency between panels.
Its improved optical transparency provides rich color output without haze.
The P1.2 GOB module with its flexible, impact-resistant surface is best suited for curved screens.
Suitable for museums, premium retail digital walls, and fine-pitch indoor broadcasting displays.

Specification	Details
Pixel Pitch	1.2 mm
Pixel Configuration	3-in-1 SMD with GOB protection
Pixel Density	640,000 dots/m²
Module Resolution (W × H)	160 × 135
Module Size (mm)	192 × 162
Cabinet Size (mm)	576 × 324 × 55
Cabinet Resolution (W × H)	480 × 270
Cabinet Material	Die-cast aluminum
Brightness (cd/m²)	≥ 600
Refresh Rate (Hz)	≥ 3840
Gray Scale (bit)	16
Viewing Angle (H/V)	160° / 160°
Contrast Ratio	5000:1
Input Voltage	AC 100~240V, 50/60Hz
Power Consumption (Max / Avg)	≤ 600 W/m² / ≤ 200 W/m²
Operating Temperature	-10°C ~ +45°C
Operating Humidity	10% ~ 90% RH
Ingress Protection (Front / Rear)	IP40 / IP21
Maintenance Mode	Front serviceable
Lifetime (hours)	≥ 100,000

P 1.5 mm GOB Indoor LED Module

The P1.5 GOB module offers tough environmental protection and is therefore suited to semi-public indoor spaces.
Its hardened surface can resist physical damage, thus making it advantageous over other traditional SMD modules.
The coating layer improves the balance of light refraction, thus enhancing color vividness.
GOB protection ensures a long lifetime even in high-traffic mounting areas.
The module delivers consistent performance even when indoor temperatures fluctuate.
Its high-transparency adhesive preserves image sharpness while protecting LEDs.
Strong internal bonding reduces the possibility of long-term detachment of the LEDs.
The module is resistant to static electricity, further reducing the risk of pixel failure.
Its color reproduction is stable, even with extended use.
Suitable for corporate displays, hotel lobbies, churches, and other creative indoor LED installations.

Specification	Details
Pixel Pitch	1.5 mm
Pixel Configuration	3-in-1 SMD with GOB protection
Pixel Density	444,444 dots/m²
Module Resolution (W × H)	128 × 128
Module Size (mm)	192 × 192
Cabinet Size (mm)	576 × 384 × 55
Cabinet Resolution (W × H)	384 × 256
Cabinet Material	Die-cast aluminum
Brightness (cd/m²)	≥ 600
Refresh Rate (Hz)	≥ 3840
Gray Scale (bit)	16
Viewing Angle (H/V)	160° / 160°
Contrast Ratio	5000:1
Input Voltage	AC 100~240V, 50/60Hz
Power Consumption (Max / Avg)	≤ 550 W/m² / ≤ 180 W/m²
Operating Temperature	-10°C ~ +45°C
Operating Humidity	10% ~ 90% RH
Ingress Protection (Front / Rear)	IP40 / IP21
Maintenance Mode	Front serviceable
Lifetime (hours)	≥ 100,000

P 1.5 mm COB Indoor LED Module

The P1.5 COB module offers a robust LED surface that is ideal for heavy-use environments where screens are frequently touched.
Its reflective-control coating diminishes glare to ensure image clarity in very bright rooms.
The module is designed to provide consistent levels of gray, which increases the detail appearance in dark scenes.
Energy-optimized COB chips provide higher brightness while using less power.
The compact LED arrangement enhances text sharpness for data-heavy visuals.
The impact-resistant surface makes it ideal for interactive and close-contact installations.
Its smooth, closed-surface design prevents LED fall-off and extends product life.
The module realizes excellent uniformity on large-scale displays without any calibration issues.
Its flicker-free output supports professional camera work and live streaming studios.

Specification	Details
Pixel Pitch	1.5 mm
Pixel Configuration	3-in-1 SMD with GOB protection
Pixel Density	444,444 dots/m²
Module Resolution (W × H)	128 × 128
Module Size (mm)	192 × 192
Cabinet Size (mm)	576 × 384 × 55
Cabinet Resolution (W × H)	384 × 256
Cabinet Material	Die-cast aluminum
Brightness (cd/m²)	≥ 600
Refresh Rate (Hz)	≥ 3840
Gray Scale (bit)	16
Viewing Angle (H/V)	160° / 160°
Contrast Ratio	5000:1
Input Voltage	AC 100~240V, 50/60Hz
Power Consumption (Max / Avg)	≤ 550 W/m² / ≤ 180 W/m²
Operating Temperature	-10°C ~ +45°C
Operating Humidity	10% ~ 90% RH
Ingress Protection (Front / Rear)	IP40 / IP21
Maintenance Mode	Front serviceable
Lifetime (hours)	≥ 100,000

Feature

High Quality LED

Using high-quality LED chips brands like Samsung, Lumileds & Nationstar to ensure color consistency

Full Black Technology

The combination of black LEDs, a black PCB frame efficiently minimizes light reflection, improves contrast, maintains color consistency, and offers true color representation.

LED Module Resolution

High refresh rate over 1920Hz and even up to 7680Hz, and eliminates module flicker problems.

SMD LED

Employs state-of-the-art SMD encapsulation, integrating single red, green, and blue LED chips (1R1G1B) per pixel and delivering vibrant and accurate color rendering

LED module brightness

The in an outdoor environment under direct sunlight.

Wide Viewing

delivers up to 160 viewing angles to reduce viewing blind spots and maximize visual coverage, delivering an outstanding visual experience

Indoor LED Display Module Specification

Indoor P0.9 LED module 320*180mm Specificaton

Specification	Details
Pixel Package	SMD 1010
Pixel Structure	1R1G1B
Pixel Pitch	0.9
Module Resolution (W×H)	320×180
Module Dimensions (W×H)	288×162
Unit Modules Component (W×H)	1
Resolution Cabinet (W×H)	640×360
Unit Cabinet Dimension	576×324
Unit Area (㎡)	0.1866
Unit Flatness (mm)	0.5 ± 2
Maintenance Mode	Front maintenance
Material	Die-casting Aluminium
Brightness (nits)	600 to 800
Color Temperature	3500–9300
Viewing Angle	160°H / 160°V
Recommended Viewing Distance	0.9m
Brightness Uniformity	≥97%
Color Uniformity	≥97%
Contrast	4000:1
Max Consumption (W/㎡)	650
Average Consumption (W/㎡)	280
Power Supply	AC 90–132V / 180–264V
Driving Mode	Constant current drive
Frame Frequency	60Hz
Refresh Rate	≥3840Hz
Processing Depth (bit)	16
Grey Level	65536
Color	16770000
Brightness Control	256 level
Working Hours	≥100000h
Working Temperature	-20℃ ~ 60℃
Storage Temperature	-20℃ ~ 60℃
Working Humidity	10% ~ 95% RH
Storage Humidity	10% ~ 95% RH
Pixel Density (dots/㎡)	~1,137,777

Indoor P1.25 LED module 320*160mm Specificaton

Specification	Details
Pixel Package	SMD 1515
Pixel Structure	1R1G1B
Pixel Pitch	1.2
Module Resolution (W×H)	208×104
Module Dimensions (W×H)	320×160
Unit Modules Component (W×H)	1
Resolution Cabinet (W×H)	344×258
Unit Cabinet Dimension	640×480
Unit Area (㎡)	0.0512
Unit Flatness (mm)	0.5 ± 2
Maintenance Mode	Front maintenance
Material	Aluminium
Brightness (nits)	600 to 800
Color Temperature	3500–9300
Viewing Angle	160°H / 160°V
Recommended Viewing Distance	1.2m
Brightness Uniformity	≥97%
Color Uniformity	≥97%
Contrast	3000:1
Max Consumption (W/㎡)	700
Average Consumption (W/㎡)	300
Power Supply	AC 90–132V / 180–264V
Driving Mode	Constant current drive
Frame Frequency	60Hz
Refresh Rate	≥3840Hz
Processing Depth (bit)	16
Grey Level	65536
Color	16770000
Brightness Control	256 level
Working Hours	≥100000h
Working Temperature	-20℃ ~ 65℃
Storage Temperature	-20℃ ~ 65℃
Working Humidity	10% ~ 95% RH
Storage Humidity	10% ~ 95% RH
Pixel Density	694444

Indoor P1.538 LED module 320*160mm Specificaton

Specification	Details
Pixel Package	SMD 1515
Pixel Structure	1R1G1B
Pixel Pitch	1.5
Module Resolution (W×H)	208×104
Module Dimensions (W×H)	320×160
Unit Modules Component (W×H)	1
Resolution Cabinet (W×H)	344×258
Unit Cabinet Dimension	640×480
Unit Area (㎡)	0.0512
Unit Flatness (mm)	0.5 ± 2
Maintenance Mode	Front maintenance
Material	Aluminium
Brightness (nits)	600 to 800
Color Temperature	3500–9300
Viewing Angle	160°H / 160°V
Recommended Viewing Distance	1.5m
Brightness Uniformity	≥97%
Color Uniformity	≥97%
Contrast	3000:1
Max Consumption (W/㎡)	700
Average Consumption (W/㎡)	300
Power Supply	AC 90–132V / 180–264V
Driving Mode	Constant current drive
Frame Frequency	60Hz
Refresh Rate	≥3840Hz
Processing Depth (bit)	16
Grey Level	65536
Color	16770000
Brightness Control	256 level
Working Hours	≥100000h
Working Temperature	-20℃ ~ 65℃
Storage Temperature	-20℃ ~ 65℃
Working Humidity	10% ~ 95% RH
Storage Humidity	10% ~ 95% RH
Pixel Density	422500

Indoor P1.875 LED module 240*240mm Specificaton

Specification	Details
Model Number	P1.875-32S
Module size	240mm*240mm
Pixel pitch	1.875mm
Pixels Density	284444 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD1515
Pixel resolution	128dots(W)*128 dots(H)
Best viewing distance	1.8M～10M
Panel current	6-6.5A
Max Power	45W
Module thickness	16mm
Weight	0.6KG
Drive type	Constant drive
Scan mode	1/32scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P2 LED module 256*128mm Specificaton

Specification	Details
Model Number	P2-32S
Module size	256mm*128mm
Pixel pitch	2mm
Pixels Density	250000 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD1515
Pixel resolution	128dots(W)*64 dots(H)
Best viewing distance	2M～20M
Panel current	3.5-4A
Max Power	36W
Module thickness	16mm
Weight	0.29KG
Drive type	Constant drive
Scan mode	1/32scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P2 LED module 256*128mm Specificaton

Specification	Details
Model Number	P2-32S
Module size	256mm*128mm
Pixel pitch	2mm
Pixels Density	250000 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD1515
Pixel resolution	128dots(W)*64 dots(H)
Best viewing distance	2M～20M
Panel current	3.5-4A
Max Power	36W
Module thickness	16mm
Weight	0.29KG
Drive type	Constant drive
Scan mode	1/32scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P2 LED module 320*160mm Specificaton

Specification	Details
Model Number	P2-40S
Module size	320*160mm
Pixel pitch	2mm
Pixels Density	250000 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD1515
Pixel resolution	160dots(W)* 80dots(H)
Best viewing distance	2M～20M
Panel current	3.5-4A
Max Power	20W
Module thickness	14.7mm
Weight	0.369KG
Drive type	Constant drive
Scan mode	1/40 Scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P2.5 LED module 320*160mm Specificaton

Specification	Details
Model Number	P2.5-32S
Module size	320mm*160mm
Pixel pitch	2.5mm
Pixels Density	160000 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD2020
Pixel resolution	128dots(W)*64 dots(H)
Best viewing distance	2.5M～30M
Panel current	4-4.5A
Max Power	36W
Module thickness	16mm
Weight	0.4KG
Drive type	Constant drive
Scan mode	1/32scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P3 LED module 192*192mm Specificaton

Specification	Details
Model Number	P3-32S
Module size	192mm*192mm
Pixel pitch	3mm
Pixels Density	111111 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD2020
Pixel resolution	64dots(W)*64 dots(H)
Best viewing distance	3M～30M
Panel current	4-4.5A
Max Power	21W
Module thickness	16mm
Weight	0.27KG
Drive type	Constant drive
Scan mode	1/32scan
Port type	HUB75E
Brightness of white balance	≥800cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P3.076 LED module 320*160mm Specificaton

Specification	Details
Model Number	P3.076-26S
Module size	320*160mm
Pixel pitch	3.076mm
Pixels Density	105688 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD2020
Pixel resolution	104dots(W)* 52dots(H)
Best viewing distance	2M～20M
Panel current	3.5-4A
Max Power	20W
Module thickness	14.7mm
Weight	0.35KG
Drive type	Constant drive
Scan mode	1/26Scan
Port type	HUB75E
Brightness of white balance	≥700cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P4 LED module 256*128mm Specificaton

Specification	Details
Model Number	P4-16S
Module size	256*128mm
Pixel pitch	4mm
Pixels Density	62400 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD2020
Pixel resolution	64dots(W)*32 dots(H)
Best viewing distance	4M～30M
Panel current	3A
Max Power	20W
Module thickness	16mm
Weight	0.21KG
Drive type	Constant drive
Scan mode	1/16Scan
Port type	HUB75E
Brightness of white balance	≥600cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

Indoor P4 LED module 320*160mm Specificaton

Specification	Details
Model Number	P4-20S
Module size	320*160mm
Pixel pitch	4mm
Pixels Density	62400 dots/m2
Pixel configuration	1R1G1B
Package mode	SMD2020
Pixel resolution	80dots(W)*40 dots(H)
Best viewing distance	4M～30M
Panel current	4A
Max Power	20W
Module thickness	12.3mm
Weight	0.27KG
Drive type	Constant drive
Scan mode	1/20Scan
Port type	HUB75E
Brightness of white balance	≥600cd/㎡
Refresh frequency	≥1920HZ
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	460 W/m2
Average Power Consumption	280 W/m2
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Gray Scale	14bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	0-100 levels
Gamma Correction	-5.0-5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Brightness Adjustment	0-100 Level
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP54

FAQ

What is an Indoor LED Screen?

An indoor LED display is an indoor digital display panel that uses light-emitting diodes (LEDs) to display pictures and videos with rich colours, high contrast, and wide viewing angles.

An indoor LED screen is a screen for indoor use. It utilizes next-generation LED technology to provide stutter-free, dynamic displays that draw attention.

Compared to outdoor LED screens, which are made to withstand weather conditions like rain and sunlight, indoor LED screens are made to highlight resolution and clarity.

What are the main components of indoor led screen?

The major parts of an indoor LED screen work together to provide good quality visual performance. They consist of:

Indoor LED Modules: These modules utilize different technologies, including:

SMD (Surface-Mount Device) is, most common in the LED market.
GOB (Glue-on-Board) for added durability and resistance to environmental conditions.
COB (Chip-on-Board) for added pixel density and greater reliability.

Cabinet (optional): The frame providing support for the LED modules, receiver card, power supplies, and cables provides stability and support.
Power Supply: Provides power distribution to the LED modules.
Receiver Card: Acts as the interface to drive the LED modules, process video signals.
Power Cables: Connect the power supply to the LED modules.
Network Cables: Connect the LED modules to the control system.
LED Sender: Converts received signals to visible content to be rendered on the screen.

What is the brightness of indoor LED display?

Typically, indoor LED screens are 600 to 1000 cd/m² luminous. However, for applications that require extra visibility or high-bright display, some specialized models that are up to 2000 cd/m² are available.

What is the size of indoor LED display?

An indoor LED screen may be very large or very small, even as small as a single module.

Usually, indoor LED screens are specified either by modules or by cabinets.

Specifying by the number of LED modules, screens are composed of a single module or hundreds of modules. Typical module sizes are:

320×160mm* 160×160mm

256×128mm

192×192mm

250×250mm

Or by cabinet, indoor LED screen size is calculated by the number of cabinets interconnected, to build a big screen composed of multiple cabinet units.

Typical cabinet sizes are:

960×960mm

640×480mm

640×360mm

640×640mm

576×576mm

480×480mm

512×512mm

960×640mm

1000×500mm

500×500mm

How to install indoor LED display?

The Indoor LED screen offers various installation options such as standing installation, suspension, or hanging.

Hanging Installation: Commonly used in indoor and semi-outdoor settings like corridors and transportation hubs.
Embedded Installation: The display is embedded into the wall, creating a seamless look, suitable for small-pitch displays.
Column Installation: Suitable for LED billboards, using single or double columns depending on the screen size.
Wall-mounted Installation: Ideal for indoor or semi-outdoor displays with limited space.
Rental Hanging Installation: Suitable for rental displays, allowing for easy setup and disassembly.
Ground Installation: Common in exhibitions and shopping malls, using stands to install the display on the ground.

What is the maintenance ways for indoor LED display?

It generally has two major access methods: rear service and front service.

1. Front Service

Front service maintenance allows you to access and serve LED modules from the front of the screen. It is mainly used for wall mounting installation.

2. Rear Service

Rear service requires access from the back of the screen and is typically used where there is ample space behind the indoor LED screen.

How to control indoor LED screen?

An indoor LED screen can be controlled in several ways to meet different demands and applications.

Synchronous control

Plug a computer into the controller using HDMI or DVI, and then plug the controller into the LED display using a network cable, and get real-time display updates.

Asynchronous Control

Connect your phone or iPad to the controller using Wi-Fi or 4G/5G, and then the controller will operate the LED screen using a network cable

Cluster Control

Supports Internet remote control, where a computer or phone logs into a cloud platform that is linked with the controller via 4G/5G/LAN/Wi-Fi, and then controls the LED display through a network cable.

What is the price of indoor LED screen?

Several factors affect the price of indoor LED screens:

Pixel Pitch: More accurate pitches (P1.2, P1.5, P2, P3) cost more due to higher LED density.
Cabinet: Different types and materials (steel and aluminium, for example) of LED screen cabinets cost differently.
Screen Size: A larger display area requires more modules, cabinets, cables, and control cards, so the price will be higher.
Additional Costs: Control systems, installation fees, and service contracts.

Get in touch

Talk To Us

Please do not hesitate to contact us with any questions. Our sales and IT teams will gladly guide you in the appropriate route.

INDOOR LED MODULES

InDOOR LED DISPLAY MODULE

Overview

Products

Features

Specification

FAQ

Overview

Types Of lED Module product

DS- 0.9 mm Indoor LED Module

P 1.25 mm Indoor LED Module

P 1.5 mm Indoor LED Module

P 1.86 mm Indoor LED Module

Specification

Details

P 2 mm Indoor LED Module

Specification

Details

2.5 mm Indoor LED Module

Specification

Deatils

P 3 mm Indoor LED Module

P 1.2 mm COB Indoor LED Module

P 1.2 mm GOB Indoor LED Module

P 1.5 mm GOB Indoor LED Module

P 1.5 mm COB Indoor LED Module

Feature

High Quality LED

Full Black Technology

LED Module Resolution

SMD LED

LED module brightness

Wide Viewing

Indoor LED Display Module Specification

FAQ

Synchronous control

Asynchronous Control

Cluster Control

Get in touch

Talk To Us

Quick Link

Google Map

Contact Us
