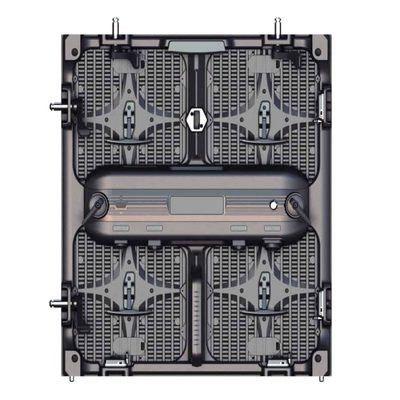

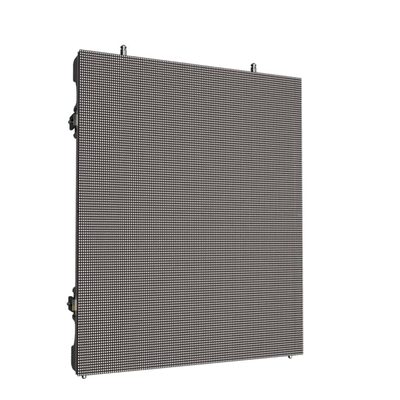

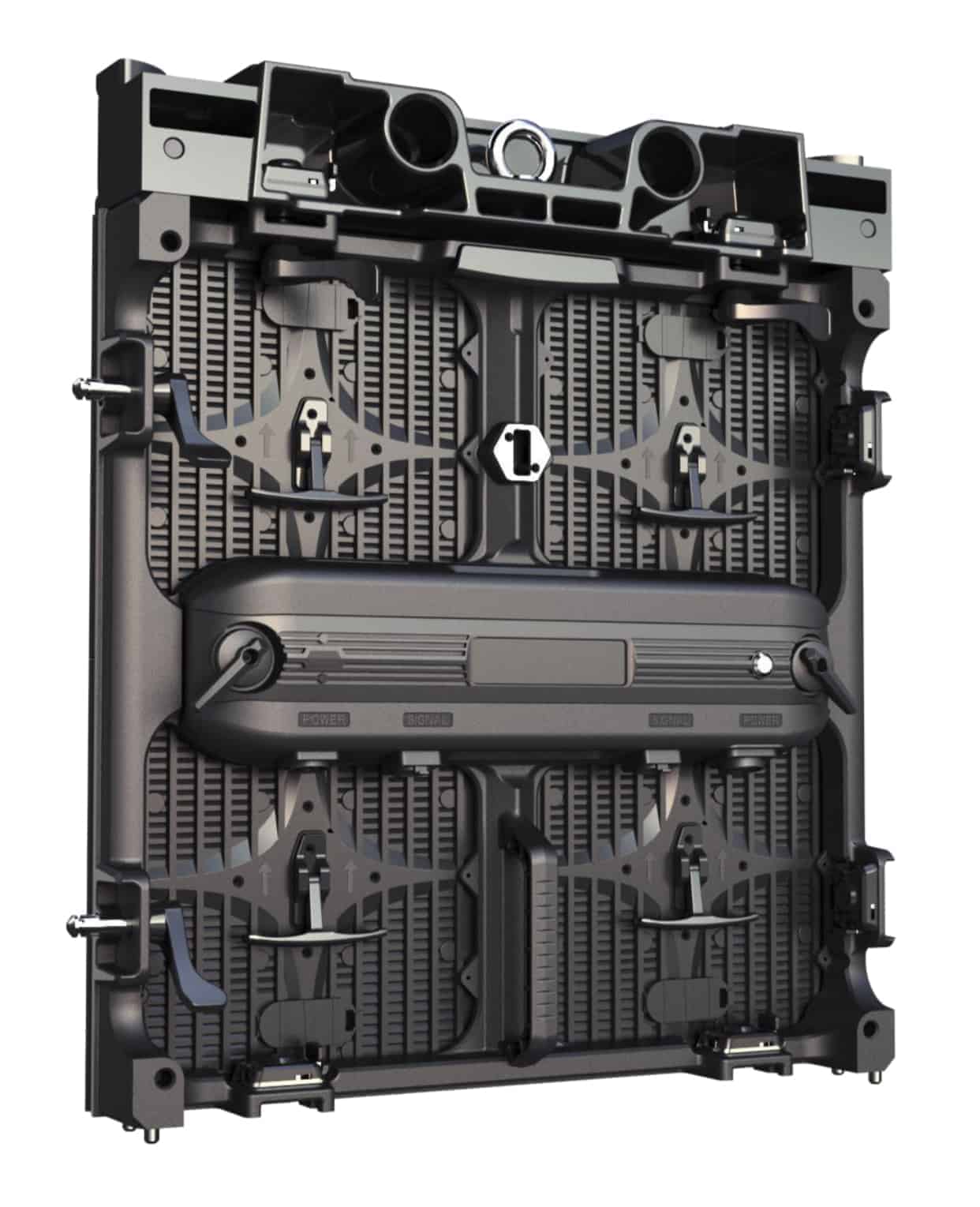

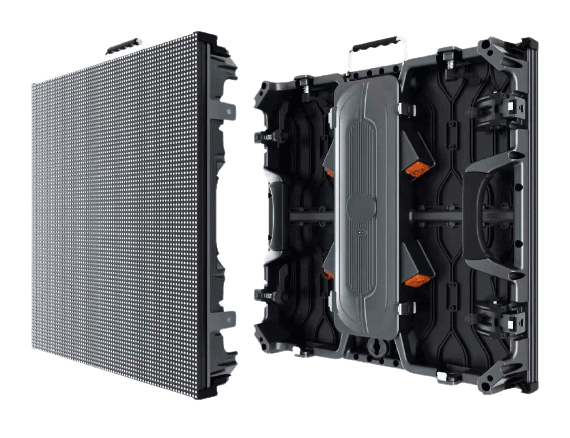

An Indoor Fixed LED Module Cabinet is a modular metal frame that holds and aligns multiple LED display modules to create a continuous, large-format video wall. Unlike mobile or rental LED screens, fixed cabinets are stationary indoor-montage installations—i.e., they remain mounted in one position for long durations with flawless image quality, stability, and reliability.
All of the cabinets are equipped with built-in wiring, connectors, and easy-to-use mounting systems for rapid assembly and adjustment. All fixtures are engineered to deliver precise LED module alignment, delivering a bevel-free, seamless view surface for professional use indoors.
| Specification | Details |
|---|---|
| Pixel Pitch | P1.2 mm |
| LED Type | SMD 1010 (3-in-1 RGB) |
| Module Size (mm) | 320 x 160 |
| Cabinet Size (mm) | 640 x 480 |
| Cabinet Resolution | 512 x 384 pixels |
| Brightness (nits) | 800 ~ 1000 nits |
| Refresh Rate (Hz) | ≥3840 Hz |
| Gray Scale | 16-bit |
| Viewing Angle (H/V) | 160° / 160° |
| Contrast Ratio | 5000:1 |
| Weight (kg) | 7.5 kg per cabinet |
| Power Consumption (Max/Avg W/m²) | 600 / 200 |
| Input Voltage | AC 100~240V, 50/60Hz |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Lifetime (hrs) | 100,000 hours |
| IP Rating | IP20 (Indoor) |
| Maintenance | Front Service |
| Signal Input | HDMI, DVI, VGA, SDI, DP |
| Control System | NovaStar / Colorlight |
| Installation Type | Fixed Indoor (Wall Mount/Frame) |
| Application | Control Rooms, Conference, Broadcast, Retail, Museums |
| Specification | Details |
|---|---|
| Pixel Pitch | P1.5 mm |
| LED Type | SMD 1212 (3-in-1 RGB) |
| Module Size (mm) | 320 x 160 |
| Cabinet Size (mm) | 640 x 480 |
| Cabinet Resolution | 416 x 312 pixels |
| Brightness (nits) | 800 ~ 1200 nits |
| Refresh Rate (Hz) | ≥3840 Hz |
| Gray Scale | 16-bit |
| Viewing Angle (H/V) | 160° / 160° |
| Contrast Ratio | 5000:1 |
| Weight (kg) | 7.8 kg per cabinet |
| Power Consumption (Max/Avg W/m²) | 550 / 180 |
| Input Voltage | AC 100~240V, 50/60Hz |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Lifetime (hrs) | 100,000 hours |
| IP Rating | IP20 (Indoor) |
| Maintenance | Front Service |
| Signal Input | HDMI, DVI, VGA, SDI, DP |
| Control System | NovaStar / Colorlight / Huidu |
| Installation Type | Fixed Indoor (Wall Mount/Frame) |
| Application | Control Rooms, Conference, Broadcast, Retail, Museums |
| Specification | Details |
|---|---|
| Pixel Pitch | P1.8 mm |
| LED Type | SMD 1515 (3-in-1 RGB) |
| Module Size (mm) | 320 x 160 |
| Cabinet Size (mm) | 640 x 480 |
| Cabinet Resolution | 352 x 264 pixels |
| Brightness (nits) | 800 ~ 1200 nits |
| Refresh Rate (Hz) | ≥3840 Hz |
| Gray Scale | 16-bit |
| Viewing Angle (H/V) | 160° / 160° |
| Contrast Ratio | 5000:1 |
| Weight (kg) | 8.0 kg per cabinet |
| Power Consumption (Max/Avg W/m²) | 500 / 160 |
| Input Voltage | AC 100~240V, 50/60Hz |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Lifetime (hrs) | 100,000 hours |
| IP Rating | IP20 (Indoor) |
| Maintenance | Front Service |
| Signal Input | HDMI, DVI, VGA, SDI, DP |
| Control System | NovaStar / Colorlight |
| Installation Type | Fixed Indoor (Wall Mount/Frame) |
| Application | Corporate Lobbies, Auditoriums, Retail Stores, Education |
| Specification | Details |
|---|---|
| Pixel Pitch | P2.5 mm |
| LED Type | SMD 2121 (3-in-1 RGB) |
| Module Size (mm) | 320 x 160 |
| Cabinet Size (mm) | 640 x 480 |
| Cabinet Resolution | 256 x 192 pixels |
| Brightness (nits) | 800 ~ 1200 nits |
| Refresh Rate (Hz) | ≥1920 Hz |
| Gray Scale | 14-bit |
| Viewing Angle (H/V) | 160° / 160° |
| Contrast Ratio | 4000:1 |
| Weight (kg) | 8.2 kg per cabinet |
| Power Consumption (Max/Avg W/m²) | 480 / 150 |
| Input Voltage | AC 100~240V, 50/60Hz |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Lifetime (hrs) | 100,000 hours |
| IP Rating | IP20 (Indoor) |
| Maintenance | Front Service |
| Signal Input | HDMI, DVI, VGA, SDI, DP |
| Control System | NovaStar / Colorlight |
| Installation Type | Fixed Indoor (Wall Mount/Frame) |
| Application | Shopping Malls, Exhibitions, Airports, Indoor Events |
