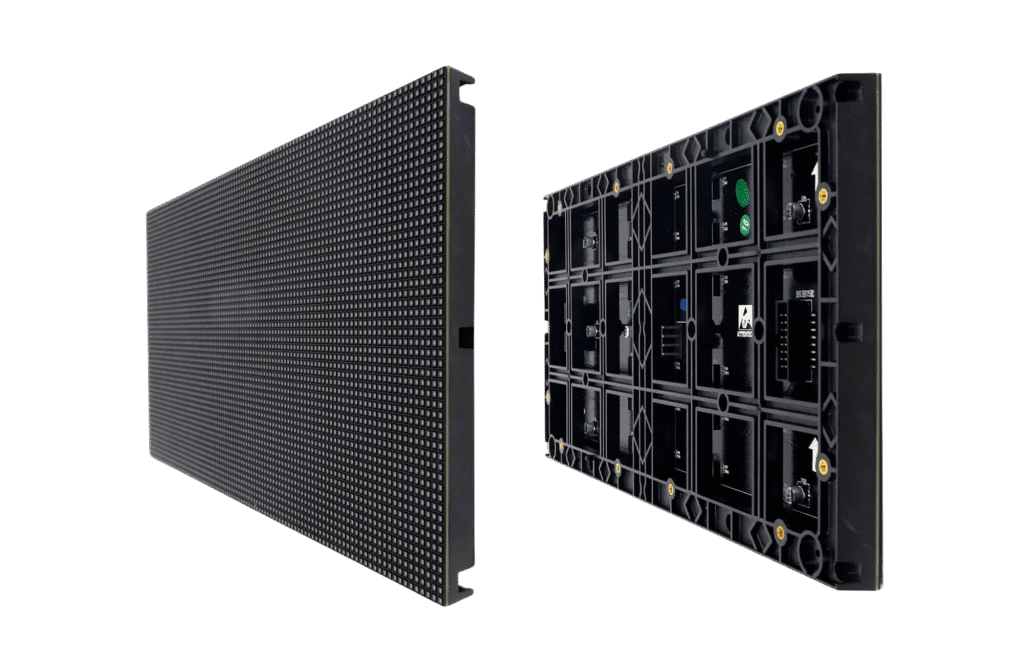

The LED display modules in Dubai, UAE, are the core of an LED display system, which contains some essential components such as LEDs, resistors and capacitors, PCB board, driver IC, connecting pins, and add-ons such as cables, rings, screws, etc. They present high-quality pictures, and it is feasible to display text, images, videos, GIFs, and documents with very good precision and brightness.
Through multiple control methods, LED display modules can be installed in various environments, indoor or outdoor, and can individually be adjusted to suit different LED display sizes. Such modules are widely used for applications like billboards, LED signs, LED screens, and LED video walls.
The LED Display modules offer several applications such as advertising, information display, monitoring, stage displays, and transportation. Their ability to be visible both day and night due to their high luminosity and dynamic range makes them ideal for public display.
Besides, the modules also provide effortless integration options for large-scale LED video walls or small-sized LED panels. The modular nature also enables maintenance and scalability, where users can upgrade or replace specific sections without interfering with the entire display system.
 High contrast ratio of 5000:1 adds depth and dimension to every frame.

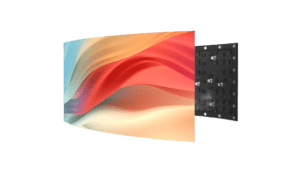

Designed to maximize flexibility and bendability, offering you the ability to design any kind of creative LED display with a variety of patterns or shapes in an easy way.
High-protection PCB board, IP65 usage level, long time outdoor use
With high-performance magnets to help the flexible LED modules can adhere to metal surfaces in a very tight fit, while you never have to worry about them falling off.
160 viewing angles, minimal blind spot, maximum visual coverage, great visual experience
The flexible module is designed for frontal maintenance. modules can be easily & quickly taken out and disassembled from the iron
The LED screen module offers rich images with high appeal that draw eyes and effectively convey messages for various applications. Some of the reasons why you may require it are as follows:
1.Display dynamic content such as videos and animations, and static text and images.
2. Real-time information dissemination is highly versatile for various uses.
3. Can broadcast information far and wide, deep and fast, and in real-time.
4. Provide crisp and clear images with 2K, 4K, and 8K resolutions
1. Can be used via computers, mobile phones, or USB drives.
2. Various connectivity modes like LAN, WIFI, 4G, 5G, and Internet operations can be handled.
3. Support for synchronization and asynchronous playback is provided, so the content on display can be switched conveniently.
1. Working life of over 10,000 hours.
Highly quality materials withstand heat, wind, and rain for life span.
2. Available in various sizes and pixel pitches to accommodate diverse applications. Resists numerous varied forms of environmental conditions.
3. Not just applicable for small screens, but also for large ones.
| Specifications | Details |
| Model Number | P1.25-64S |
| Module size | 320*160mm |
| Pixel pitch | 1.25mm |
| Pixels Density | 638976 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD1010 |
| Pixel resolution | 256dots(W)* 128dots(H) |
| Best viewing distance | 1M～10M |
| Panel current | 4.5A |
| Max Power | 22W |
| Module thickness | 15mm |
| Weight | 0.4KG |
| Drive type | SM16389 Constant drive |
| Scan mode | 1/64Scan |
| Port type | HUB320 |
| Brightness of white balance | ≥600cd/㎡ |
| Refresh frequency | ≥3840HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specifications | Details |
| Model Number | P1.538-52S |
| Module size | 320*160mm |
| Pixel pitch | 1.538mm |
| Pixels Density | 422500 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD1212 |
| Pixel resolution | 208dots(W)* 104dots(H) |
| Best viewing distance | 1.5M～15M |
| Panel current | 4-4.5A |
| Max Power | 20W |
| Module thickness | 15mm |
| Weight | 0.29KG |
| Drive type | Constant drive |
| Scan mode | 1/52 Scan |
| Port type | HUB320 |
| Brightness of white balance | ≥400cd/㎡ |
| Refresh frequency | ≥3840HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P1.875-32S |
| Module size | 240mm*240mm |
| Pixel pitch | 1.875mm |
| Pixels Density | 284444 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD1515 |
| Pixel resolution | 128dots(W)*128 dots(H) |
| Best viewing distance | 1.8M～10M |
| Panel current | 6-6.5A |
| Max Power | 45W |
| Module thickness | 16mm |
| Weight | 0.6KG |
| Drive type | Constant drive |
| Scan mode | 1/32scan |
| Port type | HUB75E |
| Brightness of white balance | ≥800cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P2-32S |
| Module size | 256mm*128mm |
| Pixel pitch | 2mm |
| Pixels Density | 250000 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD1515 |
| Pixel resolution | 128dots(W)*64 dots(H) |
| Best viewing distance | 2M～20M |
| Panel current | 3.5-4A |
| Max Power | 36W |
| Module thickness | 16mm |
| Weight | 0.29KG |
| Drive type | Constant drive |
| Scan mode | 1/32scan |
| Port type | HUB75E |
| Brightness of white balance | ≥800cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P2-32S |
| Module size | 256mm*128mm |
| Pixel pitch | 2mm |
| Pixels Density | 250000 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD1515 |
| Pixel resolution | 128dots(W)*64 dots(H) |
| Best viewing distance | 2M～20M |
| Panel current | 3.5-4A |
| Max Power | 36W |
| Module thickness | 16mm |
| Weight | 0.29KG |
| Drive type | Constant drive |
| Scan mode | 1/32scan |
| Port type | HUB75E |
| Brightness of white balance | ≥800cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P2-40S |
| Module size | 320*160mm |
| Pixel pitch | 2mm |
| Pixels Density | 250000 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD1515 |
| Pixel resolution | 160dots(W)* 80dots(H) |
| Best viewing distance | 2M～20M |
| Panel current | 3.5-4A |
| Max Power | 20W |
| Module thickness | 14.7mm |
| Weight | 0.369KG |
| Drive type | Constant drive |
| Scan mode | 1/40 Scan |
| Port type | HUB75E |
| Brightness of white balance | ≥800cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P2.5-32S |
| Module size | 320mm*160mm |
| Pixel pitch | 2.5mm |
| Pixels Density | 160000 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2020 |
| Pixel resolution | 128dots(W)*64 dots(H) |
| Best viewing distance | 2.5M～30M |
| Panel current | 4-4.5A |
| Max Power | 36W |
| Module thickness | 16mm |
| Weight | 0.4KG |
| Drive type | Constant drive |
| Scan mode | 1/32scan |
| Port type | HUB75E |
| Brightness of white balance | ≥800cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P3-32S |
| Module size | 192mm*192mm |
| Pixel pitch | 3mm |
| Pixels Density | 111111 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2020 |
| Pixel resolution | 64dots(W)*64 dots(H) |
| Best viewing distance | 3M～30M |
| Panel current | 4-4.5A |
| Max Power | 21W |
| Module thickness | 16mm |
| Weight | 0.27KG |
| Drive type | Constant drive |
| Scan mode | 1/32scan |
| Port type | HUB75E |
| Brightness of white balance | ≥800cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P3.076-26S |
| Module size | 320*160mm |
| Pixel pitch | 3.076mm |
| Pixels Density | 105688 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2020 |
| Pixel resolution | 104dots(W)* 52dots(H) |
| Best viewing distance | 2M～20M |
| Panel current | 3.5-4A |
| Max Power | 20W |
| Module thickness | 14.7mm |
| Weight | 0.35KG |
| Drive type | Constant drive |
| Scan mode | 1/26Scan |
| Port type | HUB75E |
| Brightness of white balance | ≥700cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P4-16S |
| Module size | 256*128mm |
| Pixel pitch | 4mm |
| Pixels Density | 62400 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2020 |
| Pixel resolution | 64dots(W)*32 dots(H) |
| Best viewing distance | 4M～30M |
| Panel current | 3A |
| Max Power | 20W |
| Module thickness | 16mm |
| Weight | 0.21KG |
| Drive type | Constant drive |
| Scan mode | 1/16Scan |
| Port type | HUB75E |
| Brightness of white balance | ≥600cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
| Specification | Details |
| Model Number | P4-20S |
| Module size | 320*160mm |
| Pixel pitch | 4mm |
| Pixels Density | 62400 dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2020 |
| Pixel resolution | 80dots(W)*40 dots(H) |
| Best viewing distance | 4M～30M |
| Panel current | 4A |
| Max Power | 20W |
| Module thickness | 12.3mm |
| Weight | 0.27KG |
| Drive type | Constant drive |
| Scan mode | 1/20Scan |
| Port type | HUB75E |
| Brightness of white balance | ≥600cd/㎡ |
| Refresh frequency | ≥1920HZ |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 460 W/m2 |
| Average Power Consumption | 280 W/m2 |
| Correction Scale Level | 16bits |
| Frame Update Frequency | 60-75Hz |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Gamma Correction | -5.0-5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Brightness Adjustment | 0-100 Level |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP54 |
Please do not hesitate to contact us with any questions. Our sales and IT teams will gladly guide you in the appropriate route.
